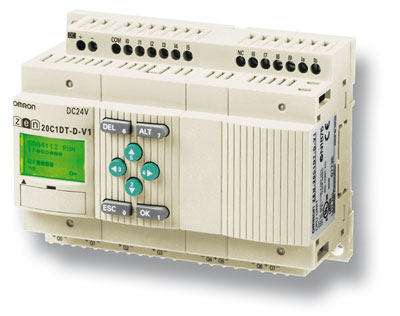

ZEN-20C | Расширенные средства гибкой автоматизации Модули программируемого реле ZEN с 20 точками входов/выходов обеспечивают 12 выходов и 8 выходов (релейных или транзисторных) в одном модуле. Применение этих модулей дает возможность для решения гораздо большего числа задач автоматизации, для которых 10 точек входов/выходов’ просто недостаточно. Модули на 20 входов/выходов предлагаются в трех различных версиях, начиная от модели С1 с ЖК-дисплеем, программируемыми кнопками управления, календарем и часами, модели С2 со светодиодными индикаторами состояния до модели С3, аналогичной С1, только с фиксированным количеством входов/выходов. Модели с 20 входами/ выходами ZEN-20C1/C2 возможно расширить до 44 выходов/выходов
Модели реле ZEN постоянного тока имеют аналоговый вход 0-10В=
Модели постоянного тока также обладают функцией 150Гц высокоскоростного счетчика.
Возможности расширения с модулями релейных или транзисторных выходов | Обратная связь |
Информация для заказа
CPU Units and Expansion I/O Units
| Unit |
Name |
No. of
I/O
points |
LCD
display |
Power supply
voltage |
Inputs |
Outputs |
Buttons,
calendar,
and clock |
Analog
input |
Model |
CPU
Units |
Standard
LCD type |
10 |
Yes |
100
to
240
VAC |
6 |
100
to
240 VAC |
4 |
Relays |
Yes |
No |
ZEN-10C1AR-A-V2 |
12
to
24
VDC |
12
to
24 VDC |
Yes |
ZEN-10C1DR-D-V2 |
| Transistors |
ZEN-10C1DT-D-V2 |
| 20 |
100
to
240
VAC |
12 |
100
to
240 VAC |
8 |
Relays |
No |
ZEN-20C1AR-A-V2 |
12
to
24
VDC |
12
to
24 VDC |
Yes |
ZEN-20C1DR-D-V2 |
| Transistors |
ZEN-20C1DT-D-V2 |
LED type
without
display
(See
note 1.) |
10 |
No |
100
to
240
VAC |
6 |
100
to
240 VAC |
4 |
Relays |
No |
No |
ZEN-10C2AR-A-V2 |
12
to
24
VDC |
12
to
24 VDC |
Yes |
ZEN-10C2DR-D-V2 |
| Transistors |
ZEN-10C2DT-D-V2 |
| 20 |
100
to
240
VAC |
12 |
100
to
240 VAC |
8 |
Relays |
No |
ZEN-20C2AR-A-V2 |
12
to
24
VDC |
12
to
24 VDC |
Yes |
ZEN-20C2DR-D-V2 |
| Transistors |
ZEN-20C2DT-D-V2 |
Economy type
(Expansion
I/O Units
cannot be
connected) |
10 |
Yes |
100
to
240
VAC |
6 |
100
to
240 VAC |
4 |
Relays |
Yes |
No |
ZEN-10C3AR-A-V2 |
12
to
24
VDC |
12
to
24 VDC |
Yes |
ZEN-10C3DR-D-V2 |
| 20 |
100
to
240
VAC |
12 |
100
to
240 VAC |
8 |
Relays |
No |
ZEN-20C3AR-A-V2 |
12
to
24
VDC |
12
to
24 VDC |
Yes |
ZEN-20C3DR-D-V2 |
Communi-
cations
type |
10 |
100
to
240
VAC |
6 |
100
to
240 VAC |
3 |
Relays |
No |
ZEN-10C4AR-A-V2 |
12
to
24
VDC |
12
to
24 VDC |
Yes |
ZEN-10C4DR-D-V2 |
| ZEN Kit |
Set containing CPU Unit (ZEN-10C1AR-A-V2), Connecting Cable, ZEN Support Software, and manual. |
ZEN-KIT01-EV4 |
| Set containing CPU Unit (ZEN-10C1DR-D-V2), Connecting Cable, ZEN Support Software, and manual. |
ZEN-KIT02-EV4 |
Expansion
I/O Units |
8 |
--- |
100
to
240
VAC |
4 |
100
to
240 VAC |
4 |
Relays |
--- |
ZEN-8E1AR
(See notes 2, 3.) |
|
12
to
24
VDC |
12
to
24 VDC |
ZEN-8E1DR
(See note 2.) |
|
| --- |
Transistors |
ZEN-8E1DT
(See note 2.) |
|
1.
Programming is not possible using only the CPU in the LED-type CPU
Unit. ZEN Support Software or a Memory Cassette is required.
2. Cannot be connected to pre-V1 and V1 CPU Units.
3. The ZEN-8E1AR cannot be connected to a CPU Unit with DC power supply.
Power Supply Unit
| Power ratings |
Input voltage |
Output voltage |
Output current |
Model |
| 30 W |
100 to 240 VAC |
24 VDC |
1.3 A |
ZEN-PA03024 |
Accessories(Optional)
| Name |
Specifications |
Remarks |
Model |
| Memory Cassette |
EEPROM (for data security and copying) |
Enables programs and parameter settings to be saved or copied to another ZEN. (See note 1.) |
ZEN-ME01 |
|
LCD-type CPU Unit with display (See note 2.) |
LED-type CPU Unit without display (See note 3.) |
| Transfer from ZEN to Memory |
Supported |
Not supported |
| Transfer from Memory Cassette to ZEN |
Supported |
Automatic transfer when power turned ON |
| Memory Cassette initialization |
Supported |
Not supported |
| Connecting Cable |
2 m RS-232C (9-pin D-sub connector) |
--- |
ZEN-CIF01 |
| Battery Unit |
10 years min. Battery life (at 25В°C) |
Ladder
programs and parameter settings are saved to the CPU Unit EEP-ROM but
calendar, clock, and holding timer bits and holding timer/counter
present
values are held by the capacitor. Therefore, if the power
supply is interrupted for 2 days or more (at 25В°C), this data will be
reset. Use a Battery Unit for systems where the power supply may be
interrupted for long periods. |
ZEN-BAT01 |
ZEN Support
Software |
Runs on Windows 95, 98, 2000, ME, XP, or NT 4.0. |
Specifically designed for the ZEN (CD-ROM). |
ZEN-SOFT01-V4 |
1.
Memory Cassettes created using a CPU Unit can be read to other CPU
Units, regardless of which model is used. Restrictions, apply, however,
to the functions that can be used, depending on the CPU Unit version
combination.
2. Standard LCD-type, Economy-type, and Communications-type CPU Units (i.e., excluding ZEN-[]C2[][]-[]-V2 models).
3. LED-type CPU Unit without display (i.e., ZEN-[]C2[][]-[]-V2 models).
Mounting Accessories(Optional)
| Name |
Specifications |
Model |
| Mounting Track |
50 cm (l) × 7.3 mm (t) |
PFP-50N |
| 1 m (l) × 7.3 mm (t) |
PFP-100N |
| 1 m (l) × 16 mm (t) |
PFP-100N2 |
| End Plate |
PFP-M |
| Spacer |
PFP-S |
|
|
|
|
